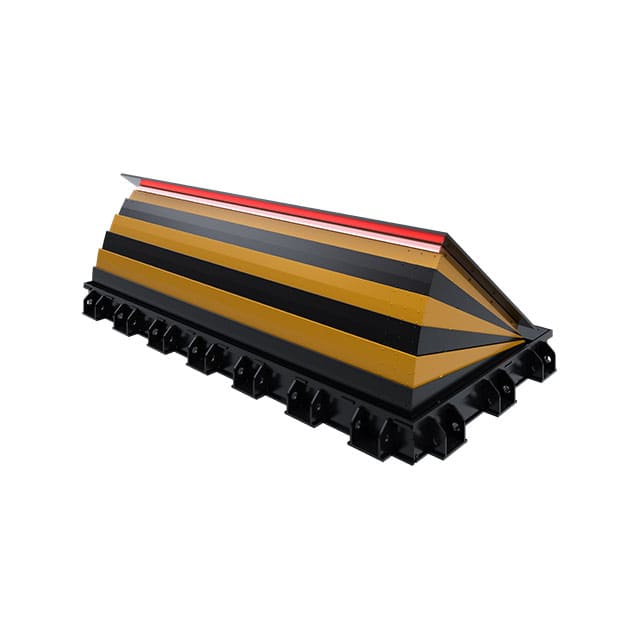

PAS68/IWA14-1 (7,5t@48kph) Ultra shallow road blocker

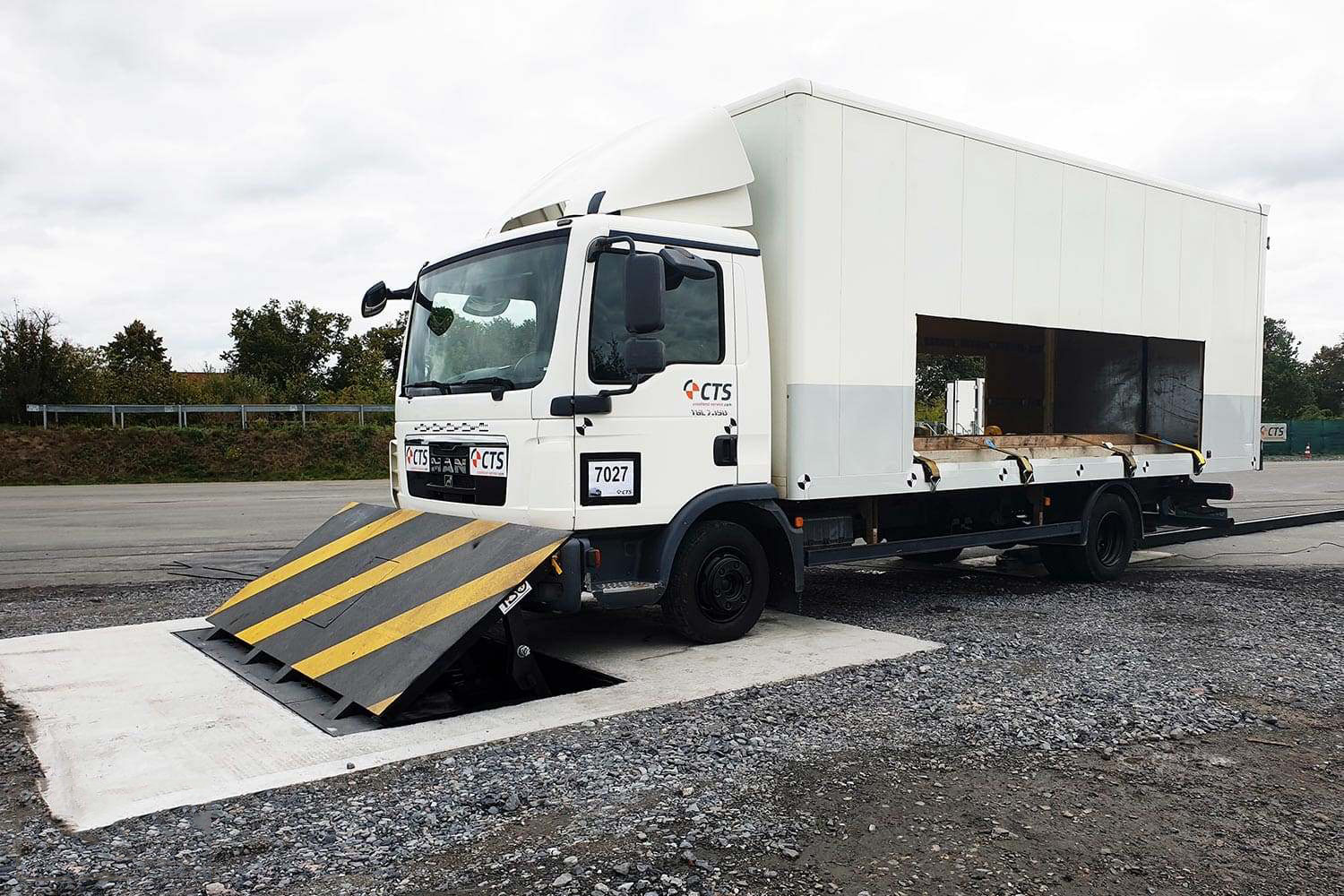

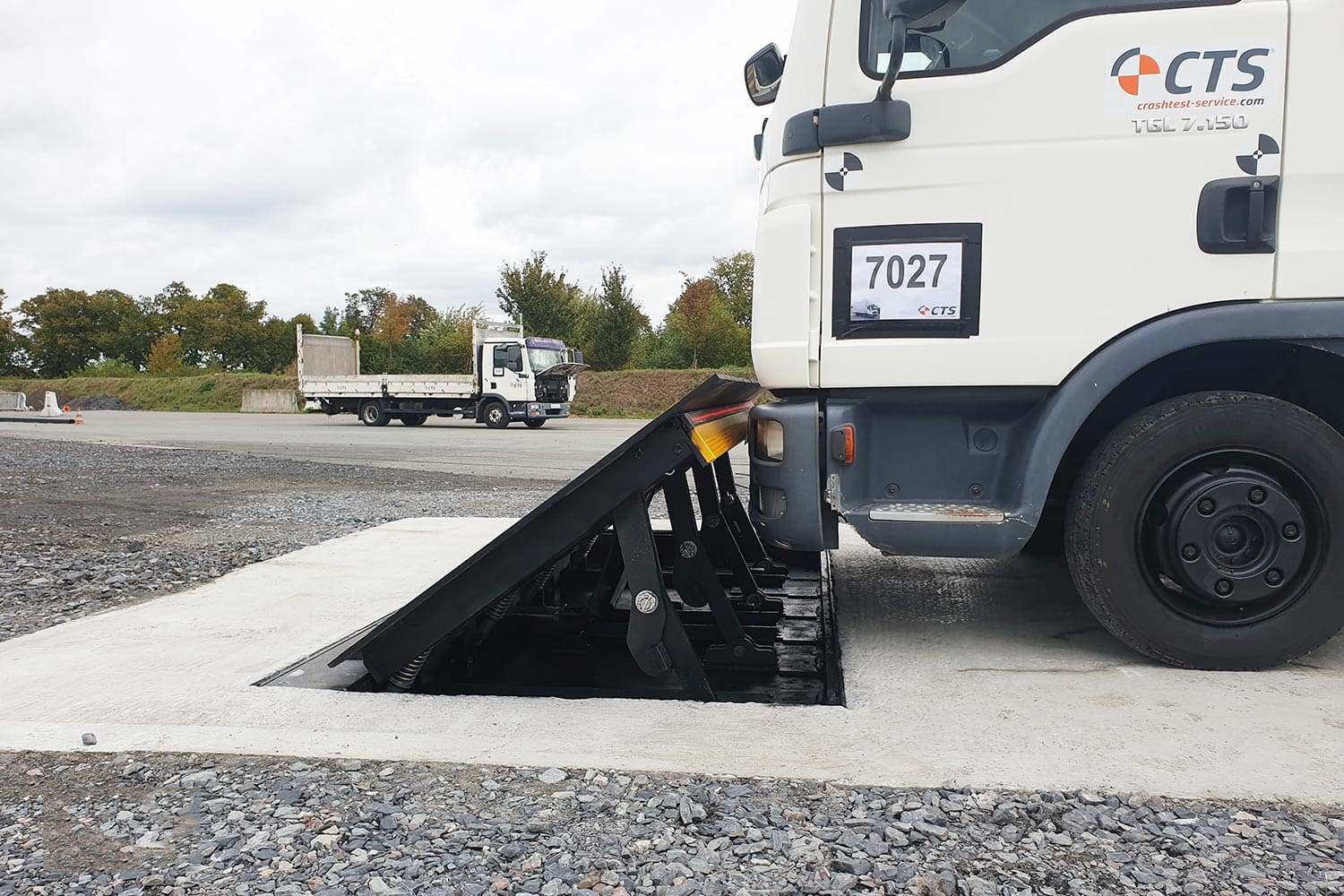

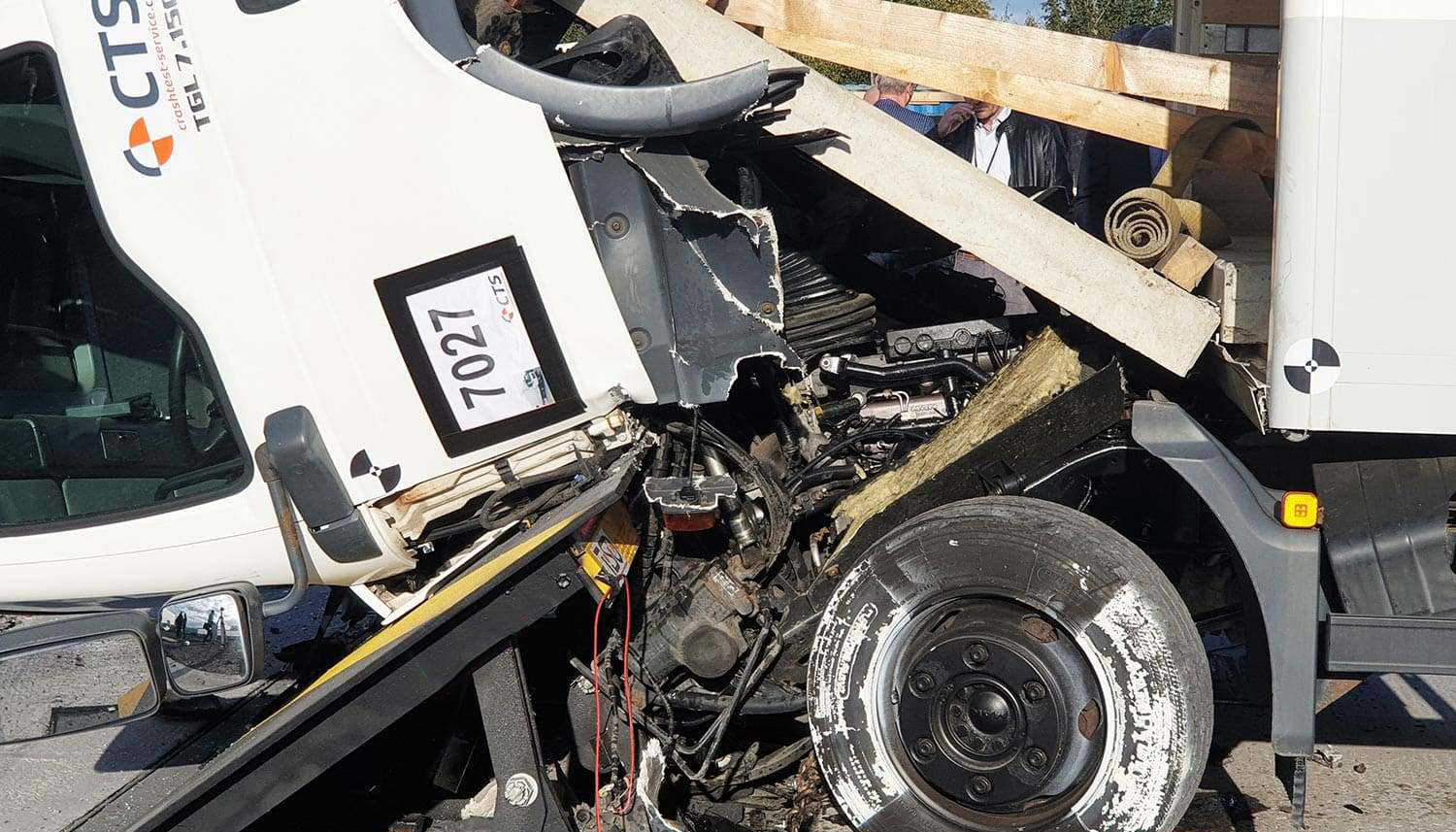

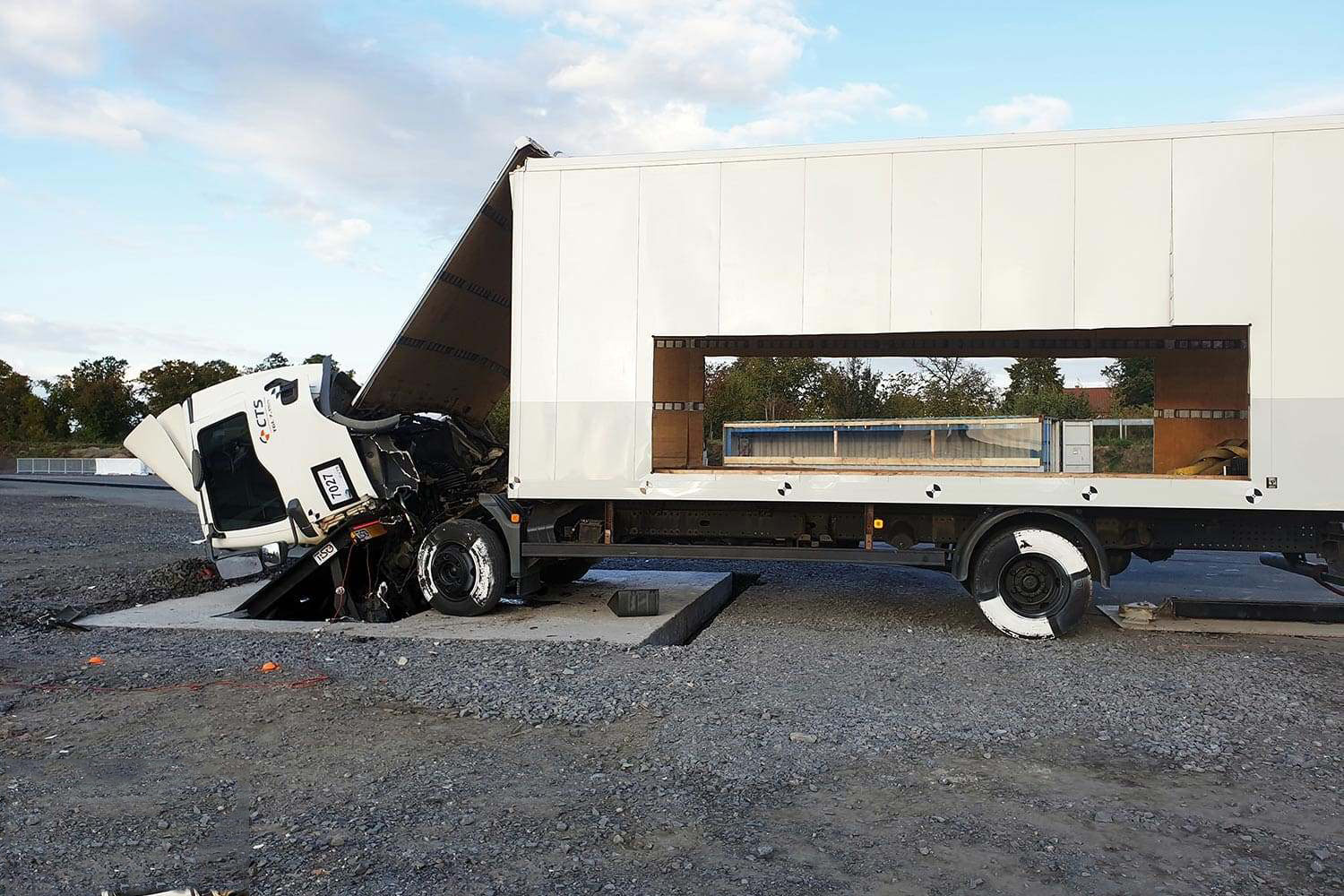

Ultra shallow road blockers were designed to protect the perimeter of the protected area. This blocker can stop truck of 7 500 kg (7,5 t) mass driving at 48 kph (30 mph) speed. This is confirmed by successfully passed tests BSI PAS 68:2013 and IWA 14-1:2013.
Such a blocker fully meets the requirements for the protection of highly classified objects. In addition to anti-ramming properties, this blocker has another advantage – this is an ultra small installation depth of 200 mm. The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and speed of installation.
Pobierz broszurę informacyjną (EN)
Zapytaj o ten produkt
Dane techniczne
Model | RB312-01 | RB313-01 | RB314-01 |
Security class | BSI PAS68:2013 and IWA 14-1:2013 (7,5t@48kph) | ||
Installation type | Submersible | ||
Drive | Hydraulic / External | ||
Blocking width, mm | 2000 | 3000 | 4000 |
Rising platform lift height | 800 (± 20 mm) | ||
Dimensions*, mm WxLxH hxV |
2170x1640x200 800×1980 |
3170x1640x200 800×2980 |
4170x1640x200 800×3980 |
Power consumption, kW | 3 | ||
Rising time, s | 3,5 (± 1s) / with EFO – 1,5 s | ||
Lowering time, s | 3,5 (± 1s) | ||
Installation depth, mm | 200 | ||
Maximum axle weight limit, t | 15 | ||
Penetration resistance, kJ | 689,27 | ||
Power supply | 3 phases 400 V, 50/60 Hz (standard) 1 phase 230 V, 50/60 Hz (option) |
||
Protection level | IP 67 (for road blocker) IP 54 (for control cabinet) |
||
Operating temperatures**, °C | -40 / +60 | ||
Material | Structural steel C22 | ||
Coating*** | Epoxy Polyurethane RAL 9005 Black / RAL 1003 Yellow |
||
* Dimension designations see in the Drawings tab ** For temperatures lower than -10 °C use the heating device; for temperatures higher than +40 °C use the cooler device *** Hot dip galvanization is available as an option |
